SPECIFICATIONS

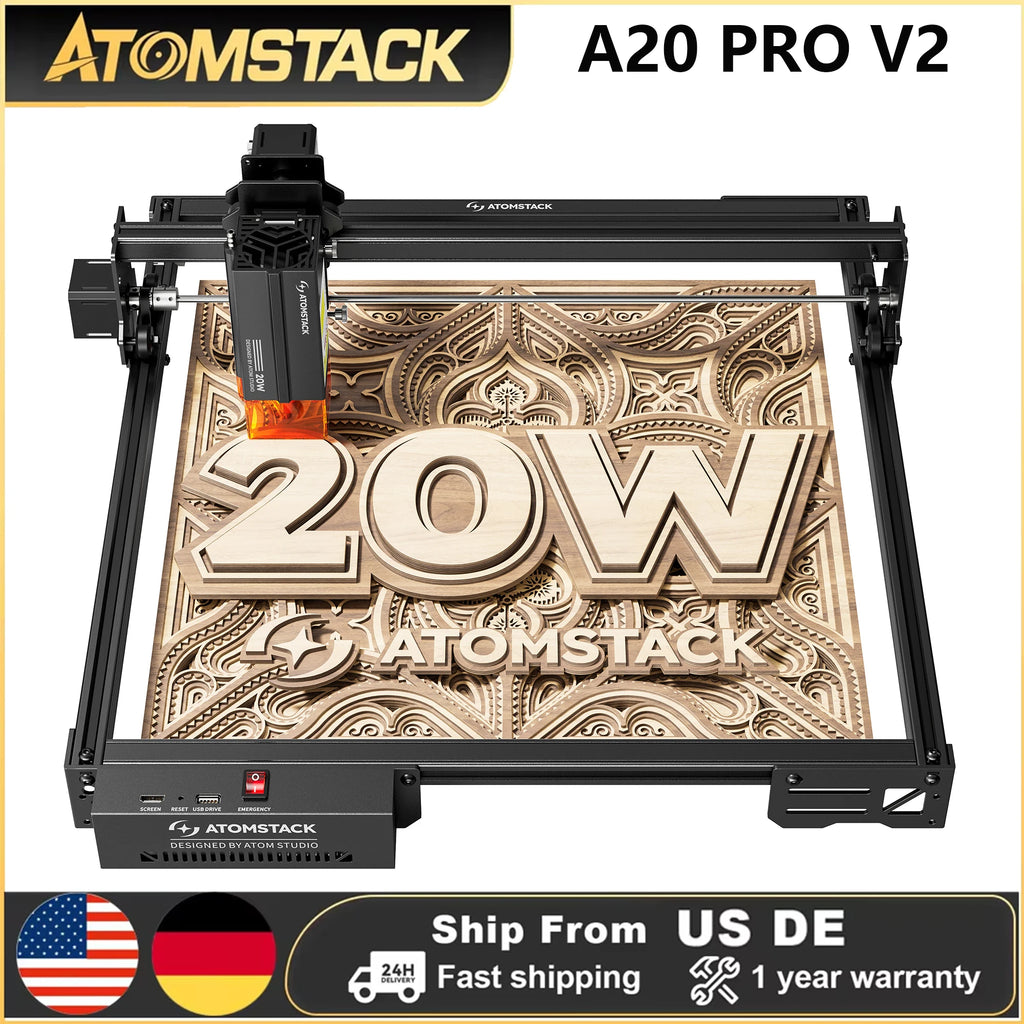

AtomStack A20 Pro V2 Laser Engraver Specification:

Product Model:A20 Pro V2

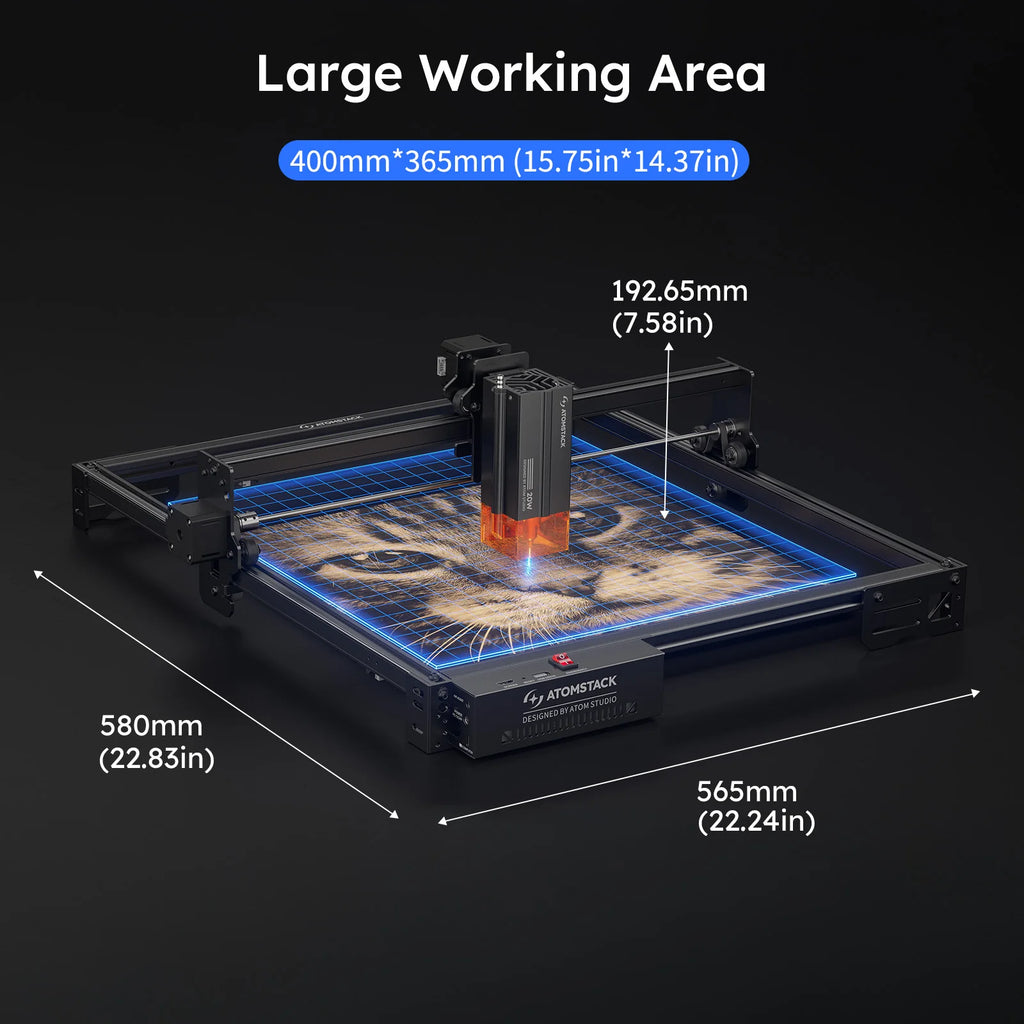

Device Size:574.75 * 640 * 192.65mm
Engraving Size:400 * 400mm
Working Principle:Engraving / Cutting
Engraving Materials:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate.
Cutting Materials:Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge.
Input Power:120W

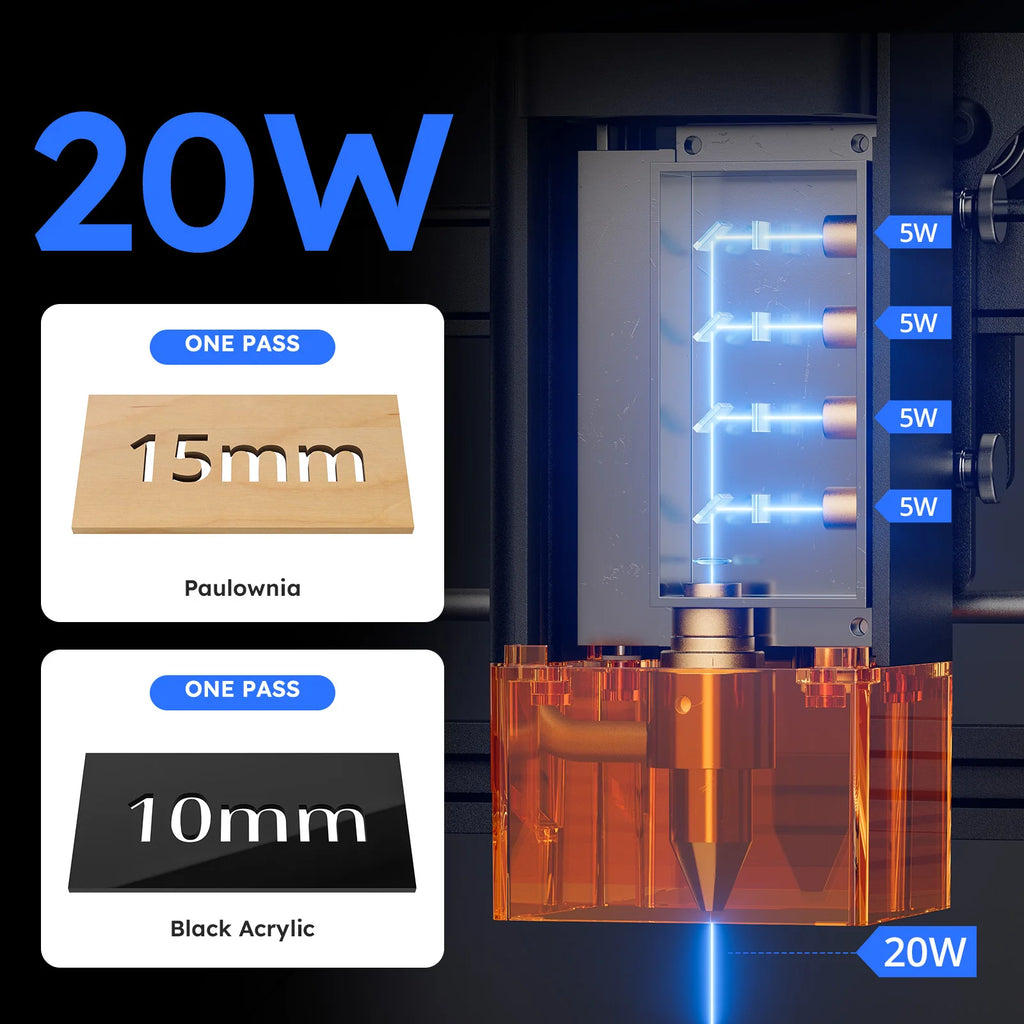

Output Power:20-24W
Maximum Speed:30000mm/min
Laser Wavelength:455±5nm

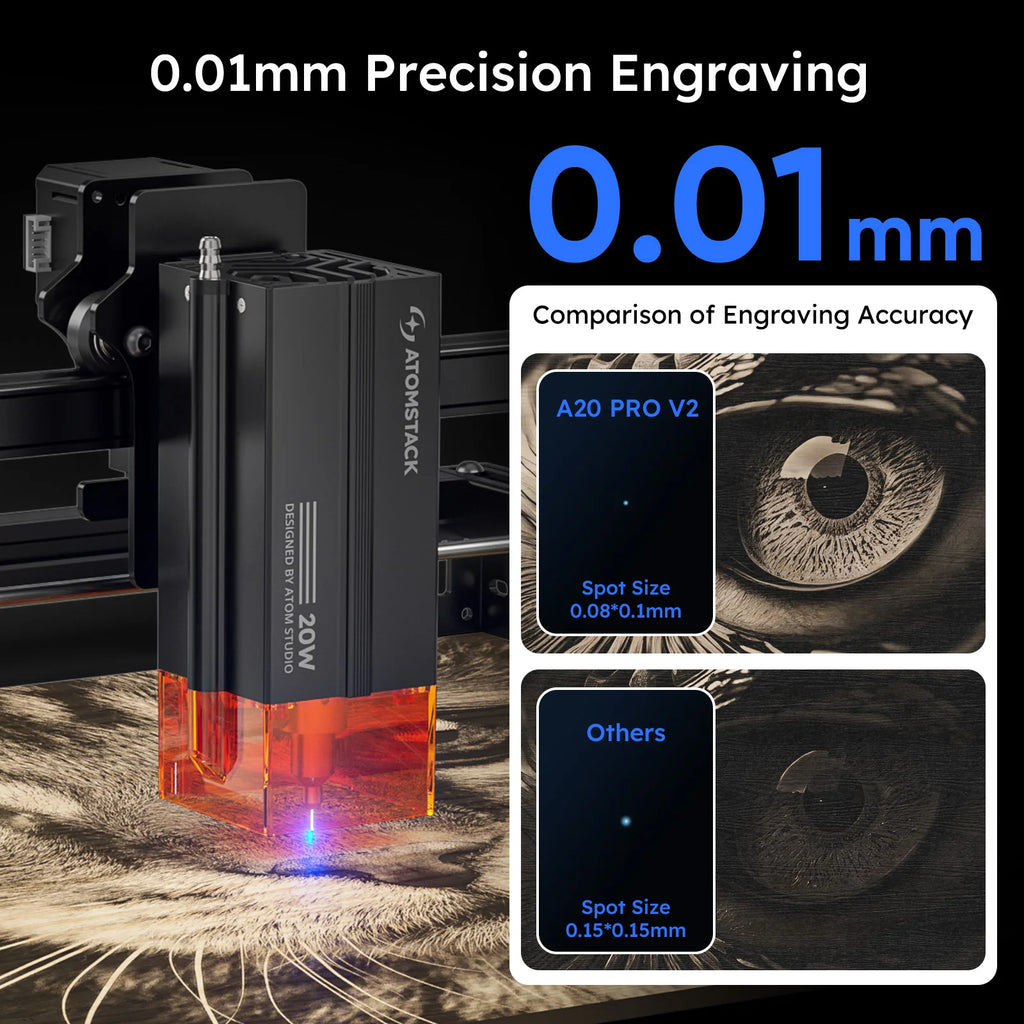

Engraving Accuracy:0.02mm
Spot Size:0.08*0.10mm
Joint Structure:POM Wheels
Connection Method:USB、Wi-Fi 2.4G
Supported Devices: Mobile: Android, iOS
Supported Operating Systems: Windows, mac OS
Software:LightBurn、LaserGRBL、Atomstack PC、Atomstack APP
Driver Update: AtomStack APP or USB drive
Supported Formats:JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
Focus Adjustment Method:Automatic focus + Manual focus
The automatic focus requires support from the Z2 Z-axis slider
(Pre-sales will start in mid-March)
Tip-over Alarm:Tipping angle>15°, buzzer prompts
Cross Positioning:Yes
Flame detection:Yes, it requires support from the Z2 Z-axis slider
(Pre-sales will start in mid-March)
Resume Engraving:Yes
Quality Certification:IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA
